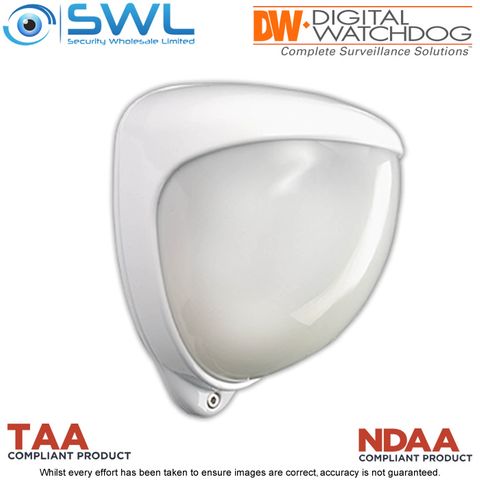

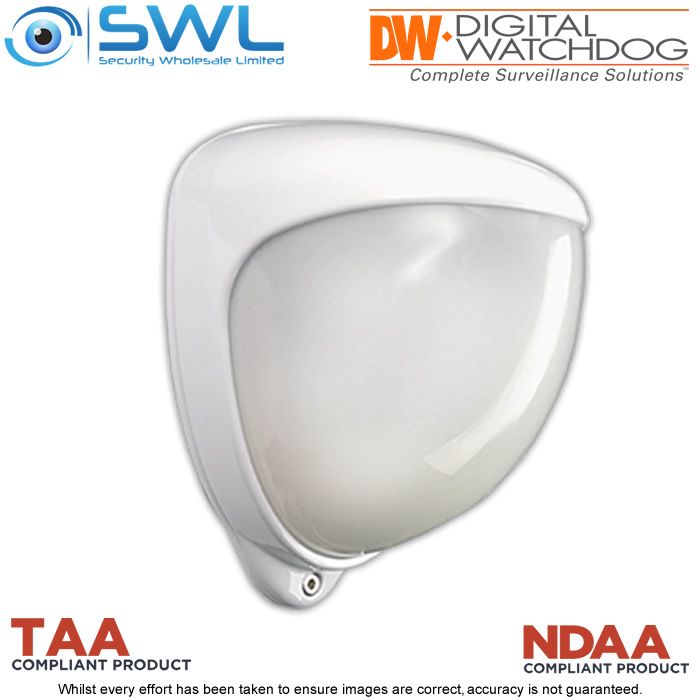

DW: DW-DTMWIPW SiteWatch™ PoE Outdoor Quad PIR 10°-70° 30m

Stock Code:
64825
POA

Description

The DW-DTMWIPW is a quad-element passive infra-red (PIR), external movement detector that combines advanced signal processing and unique optical systems. The detector’s quad PIR sensing module is equipped with two (2) volt-free outputs with a programmable beam range of up to 30m, avoiding boundary overspill and making it particularly effective for perimeter detection.

Using PoE and IP communication, the DW-DTMWIPW supports direct integration with DW Spectrum® IPVMS, all major* VMS and camera systems on the market.

* External Quad-element PIR sensor - optimum 3m mount
* Power Input - PoE 3.8W
* 10° - 70° detection angle
* Programmable beam-range of up to 30m
* Dimensions - 120 x 145 x 115m
* Two (2) volt-free outputs
* Exceptional resistance to false alarms
* Advanced signal processing, quad-pyro and optical systems
* Trigger lights and smart devices when movement is detected
* Direct integration with DW Spectrum® IPVMS
* Intruder notifications
* Set up lux-level events to operate blinds and curtains
* Environmental temperature monitoring to help manage internal air conditioning and heating
* Web interface built-in
* IP65 environmental-rated dust-tight and water-protected
* NDAA/TAA compliant

See speciification sheet for full information.
