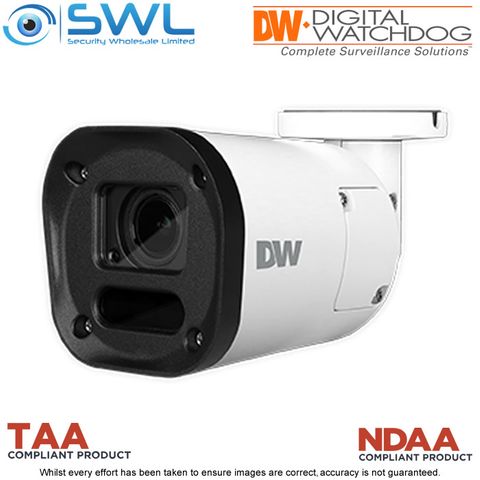

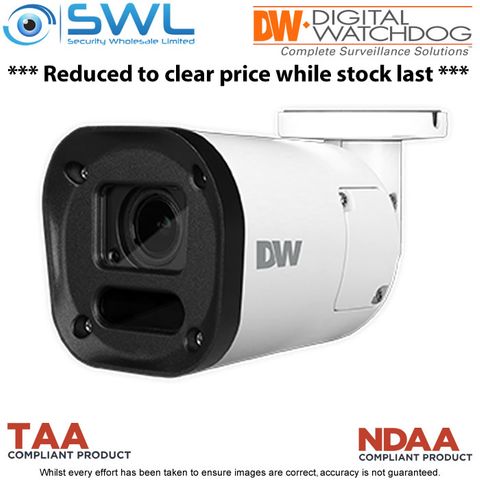

DW: DWC-XSBE05Li MEGApix® Ai 5MP Bullet WDR IR35m IP67 IK10 5-50mm
Description
This MEGApix® Ai bullet is NDAA compliant and delivers crystal-clear images at 5MP resolution and real-time 30fps. This turret camera features a 5-50mm varifocal lens and a 360° camera gimbal for absolute view adjustment. Added intelligence includes line crossing, perimeter intrusion, video tampering detection and object classification. All MEGApix Ai cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
* Sensor 1/2.8" CMOS. 5MP @ 30fps
* Lens / FOV - 5mm - 50mm, 7.7° - 46.2° (H) FOV. Motorised
* Video Compression - H.264, H.265 & MJPEG
* Wide Dynamic Range - True WDR 120dB
* Min Illumination - 0.00 lux (B/W), 0.04 lux (colour) Star-Light Plus
* Max IR Distance - 35m, Smart IR
* Ai Analytics: Zones & lines, tamper, metadata, intrusion, line crossing, counting, counting lines
- Appear, disappear, stopped, enter, exit, direction, tailgating, dwell, logical rules
* Audio Input - 1 input (1.0Vms, 3K ohm) and 1 output
* Audio Compression - G.711
* Alarms - 1 input,1 output
* Interoperability - Any ONVIF compliant CMS, DW Spectrum® IPVMS
* Compatibility - ONVIF Profile S
* Storage - Micro SD/SDHC/SDXC class 10 card up to 256GB (card not included)
* Dimensions - 197.5 x 86 x 85 mm
* Power - PoE Max 11.1W IR on, 12VDC 8.8W
* Ingress Rating - IP67. IK10 Aluminium casing
* Compliance - FCC, CE, ROHS, NDAA, ONVIF, UL
Brackets
* Junction Box - DWC-B7JUNCW 61170
* Pole Mount Bracket: DWC-PMB-WLW 61140
