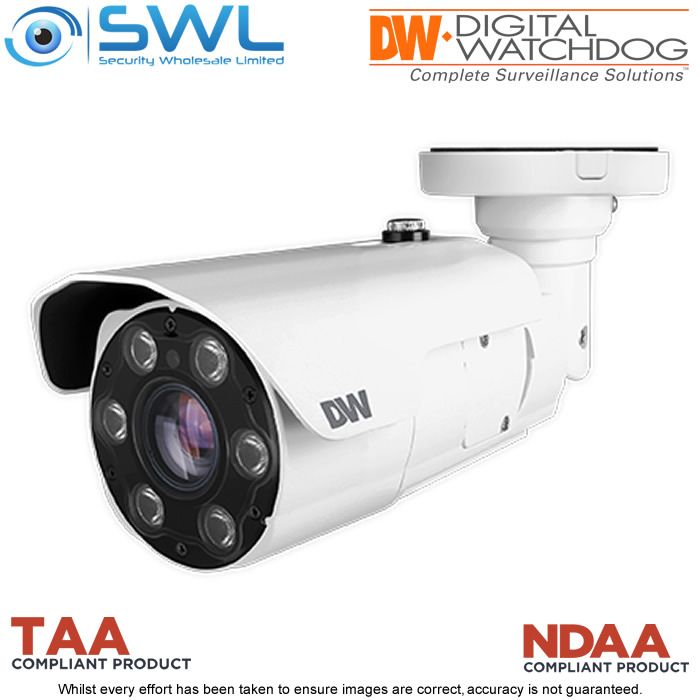

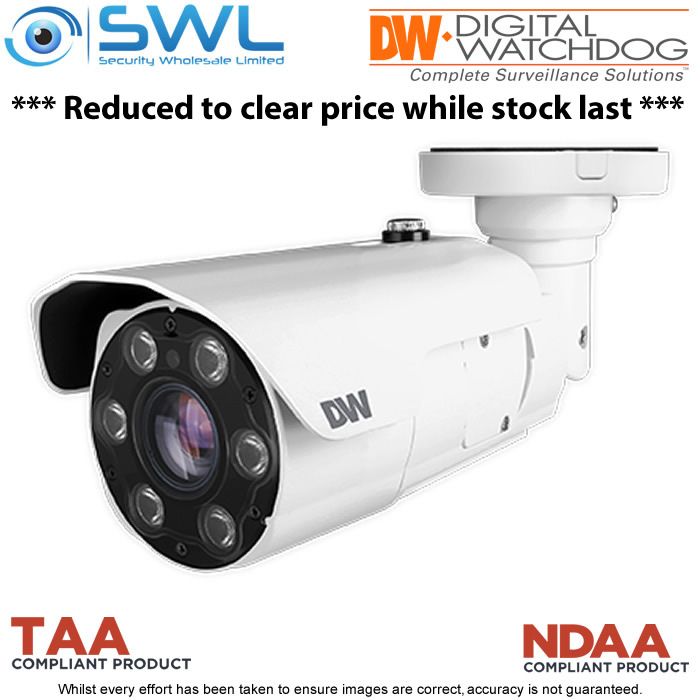

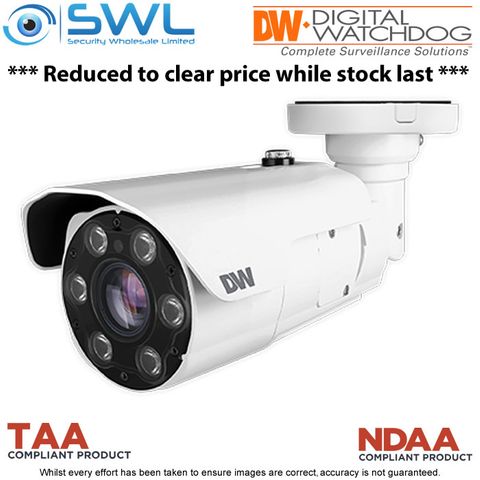

DW: DWC-XSBA08Mi MEGApix® Ai 8MP Bullet WDR IR40m IP67 IK10 2.7-13.5mm
Description
This NDAA and TAA-compliant MEGApix® Ai™ Bulllet camera provides 4K resolution at real-time 30fps with an Ai edge engine onboard. MEGApix Ai cameras place the power of Ai deep learning at your fingertips, with object detection and tracking. This camera features Star-Light Plus™ color in near- total darkness technology and true WDR for quality video in any lighting condition and a 2.7~13.5mm vari-focal auto-focus lens for clarity and convenience. The IP67-rated, IK10 impact-resistant vandal housing features CleanView™ self-cleaning dome treatment to repeal water and grime. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
* Sensor 1/2.8" CMOS. 8MP @ 30fps
* Lens / FOV - F1.4. 2.7mm -13.5mm, 90.3° - 33.1°(H) 49°-18.9°(V). Motorised
* Zoom - 5x Optical Zoom
* Video Compression - H.264, H.265 & MJPEG
* Wide Dynamic Range - True WDR 120dB
* Min Illumination - 0.00 lux (B/W), 0.09 lux (colour) Star-Light Plus
* Max IR Distance - 42m, Smart IR
* Ai Analytics: Zones & lines, tamper, metadata, intrusion, line crossing, counting, counting lines
- Appear, disappear, stopped, enter, exit, direction, tailgating, dwell, logical rules
* Audio Input - 1x built-in Mic and 1 output
* Audio Compression - G.711
* Alarms - 1 input,1 output
* Interoperability - DW Spectrum® IPVMS
* Compatibility - ONVIF Profile S
* Storage - Micro SD/SDHC/SDXC class 10 card up to 256GB (card not included)
* Dimensions - 125 x 92mm
* Power - PoE Max 14.8W IR on, 12VDC 14.8W .308mA
* Ingress Rating - IP67. IK10 Aluminium casing
* Compliance - FCC, CE, ROHS, NDAA, ONVIF, UL
Brackets
* Junction Box: DWC-BLJUNCW 61170
* Pole Mount Bracket: DWC-PMB-WLW 61140
* Corner Mount Bracket: DWC-V1CNMW 61180
See specification sheet and manual below for further information.
