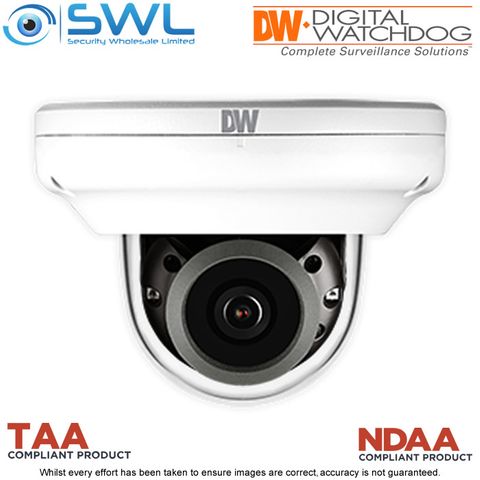

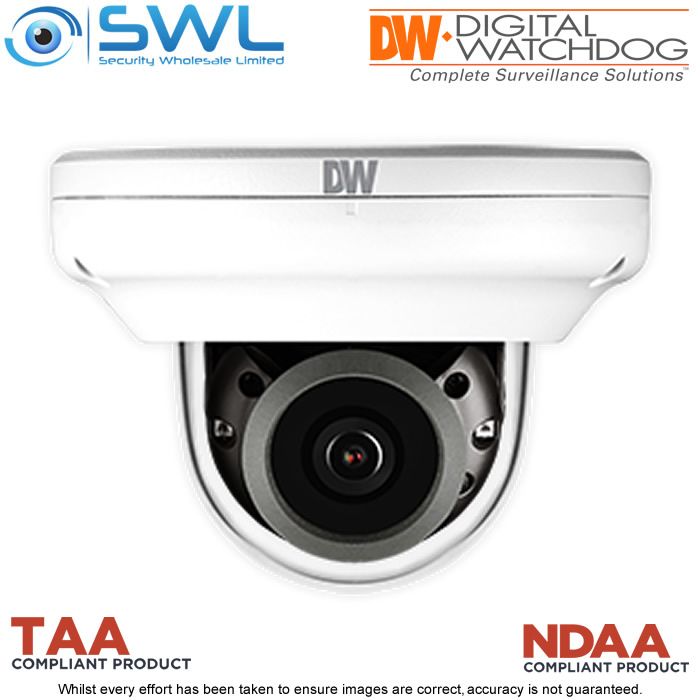

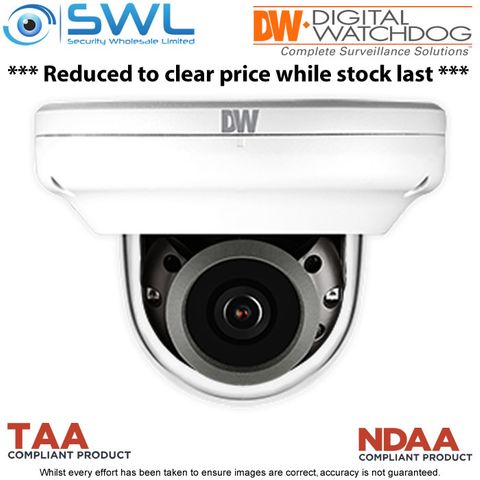

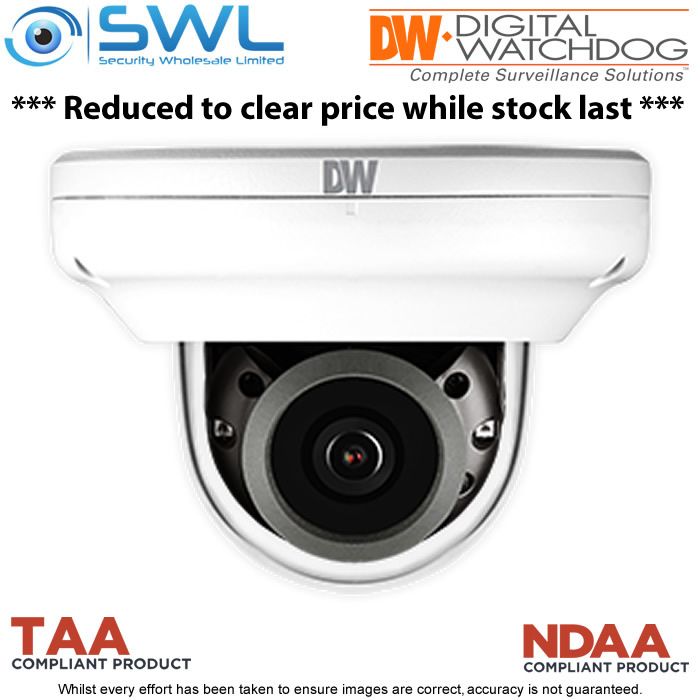

DW: DWC-MVC8Wi28TW MEGApix IVA 8MP Discreet Dome WDR IR30m IP67 IK10 2.8mm
Description
This NDAA-compliant MEGApix® low-profile Dome provides 8MP resolution at real-time 30fps, includes a 2.8mm fixed lens and simultaneous H.265/H.264MJPEG codec support. The camera is powered by Star-Light Plus™ color in neartotal darkness technology for quality video in any lighting conditions. The IP66-rated, IK10 impact resistant vandal housing features CleanView™ self-cleaning dome treatment. All MEGApix® cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
* Sensor/ 1/2.8" CMOS. 8MP
* Lens / FOV - F2.0mm. 105.5° (H)
* Video Compression - H.264, H.265 & MJPEG
* Wide Dynamic Range - True WDR 120dB
* Min Illumination - 0.00 lux (B/W), 0.18 lux (colour) Star-Light Plus™
* Max IR Distance - 30m, Smart IR™
* IVA - Intrusion, line crossing, counting line, loitering, enter, exit, tamper and
* IVA+ - Logical rules, object removed, tailgating, direction, stopped, appear, disappear, object left.
* Audio Input - 1 input, 1 output
* Audio Compression - G.711
* Alarms - 1 input,1 output
* Interoperability - DW Spectrum IPVMS
* Storage - Micro SD/SDHC/SDXC class 10 card (card not included)
* Dimensions - 125 x 92mm
* Power - PoE Max 9.6W IR on, 12VDC 8W
* Ingress Rating - IP67. IK10 Aluminium casing
* Compliance - CE, FC, NDAA, ONVIF, UL
Brackets
* Junction Box: DWC-VFJUNCW 61110
* Wall Mount Bracket : DWC-VFWM 61120
* Ceiling Mount Bracket: DWC-VFCMW 61130
* Flush Mount Bracket: DWC-VFFMW 61150
* Pole Mount Bracket : DWC-PMB-WLW 61140
See specification sheet and 'manual' below for further information.
