Provision-ISR NVR12-16400PFAN(1U) 16CH, FACE RECOGNITION NVR 16x PoE 1x 4TB HDD
Stock Code:
33561H
POA
Description

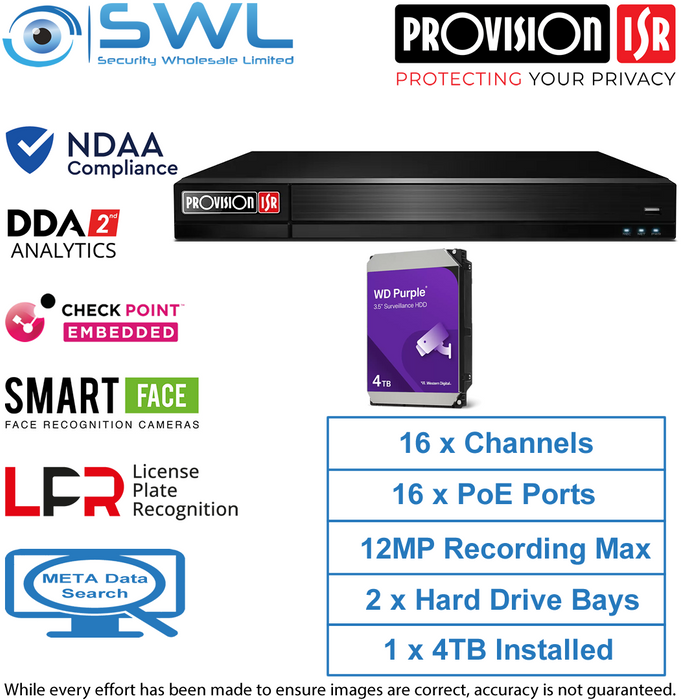

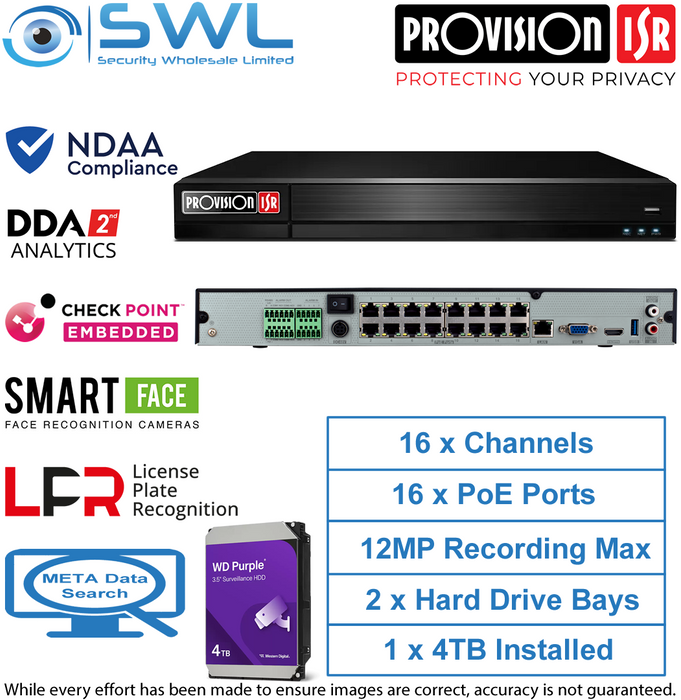

Provision-ISR's NVR12-16400PFAN(1U) is an NDAA-compliant high-performance network video recorder with an integrated 16-channel PoE switch for high-definition surveillance, supporting Face Recognition and advanced Video Analytics (DDA). The device, suitable for small-sized installations (up to 16 channels), features 8 alarm inputs + 4 alarm outputs and provides you with everything you need for a trouble-free CCTV project.
Features:
* NDAA Compliant NVR* IP Video Inputs - 16
* Onboard PoE - 16ch IP, 240W total budget (15W average)
* Max Input / Output Bandwidth - 160Mbps / 160Mbps
* Recording - 16 x 12MP @ 20FPS, 16 x 8MP @ 25FPS
* Max Decoding - 1x 12MP; 4x 2MP ; 9/16Ch x D1
* Video Compression - H.265 / H.265+/ H.265S/ H.264
* Display Outputs - HDMI (4K, 1080P), VGA (1080P, 1280x1024, 1024x768)
* Storage - 2x HDD Bays. Max 8TB each. Not included
* PTZ support - IP only. RS-485 port available for PTZ controller
* Ethernet Uplink Port - 1000 Mbps (RJ-45)
* Analytic Support - DDA2, Face Recognition, LPR & Fish-Eye Support (camera dependent)
* Audio Input/ Output - 1CH IN/ OUT & Camera Inputs
* Alarm Input/ Output - 16CH + IPC
* Dimensions - 380mm (W) x 268mm (D) x 48.1mm (H)
* APP Support - Provision CAM2 for iOS/ Android
* APP Support 2 - IE for Windows 7/8/10, Safari for Mac OS, CMS for Windows/MAC
Storage & UPS Options:
* 4Tb 46075* 6Tb 460751
* 8Tb 460752
* 10Tb 460753
* EATON 5E UPS 650VA/360W, 2x NZ OUTLETS 13070
* EATON 5E UPS 1100VA/660W, 3x NZ OUTLETS 13076
