KNIGHT D75MULTI: Indoor SM Reed Switch, 35mm Gap, N/C, 4 Terminal, Built in EOL
Description
Manufactured to BS EN50131-2-6
Security Grade 2 / Environmental Class II - Indoor Controlled
D75MULTI features a variety of integral resistors, providing 2 wire EOL installation capability. The resistors will suit a wide range of the most popular panel brands such as
* Honeywell (Ademco/Microtech) 1k/1k
* Cooper (Scantronic, Menvier, Texecom, Pyronix, Castle) 2k2/4k7
* Siemens, Aritech, HKC 4k7/4k7
* RISCO (Gardtec) 4k7/6k8
* Guardall 4k1/4k1
* DSC 5k6/5k6
* Europlex 2k2/2k2
* Inner Range 2k2/6k8

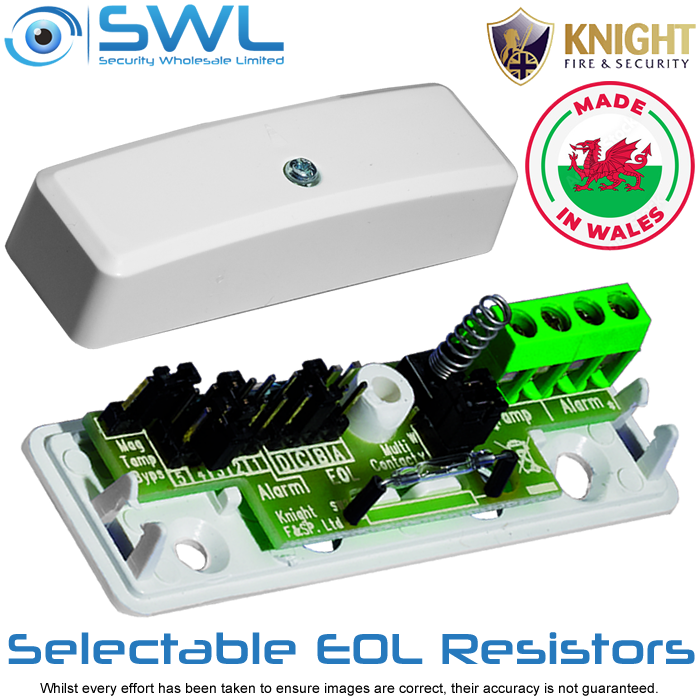

The resistors are integral to the PCB – specific configurations are made by linking PCB pins using the supplied shunts. An option is provided to bypass these resistors entirely, should a traditional 4-wire or other configuration be required.
Wiring is completed using four wire clamping screw down terminals on the PCB.
A microswitch tamper provides detection lid removal.
Fitting screws are supplied.
Specification:
* Environmental Class: Grade 2, class II - Indoor Controlled
* Terminals: 4 Terminal
* Tamper: Microswitch
* EOL Resistors - 1k, 2k2, 4k1, 4k7, 5k6
* EOL Alarm Resistors - 1k, 2k2, 4k1, 4k7, 5k6
* Operating Gap: Up to 35mm
* Voltage Range: 15v DC Max
* Switching Current: 250mA Max DC
* Dimensions: 78mm x 24mm x 20mm.
See technical drawing below.
Integrators, please log in to SWL website to see installation document.
