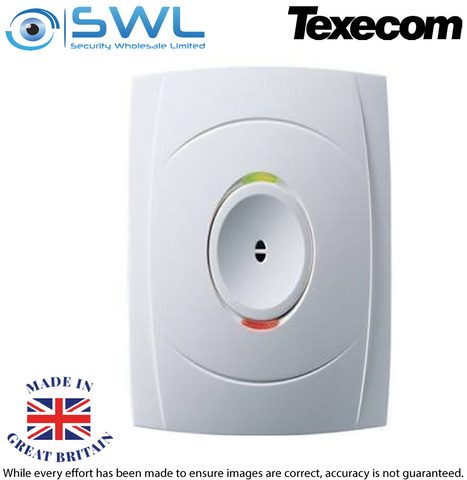

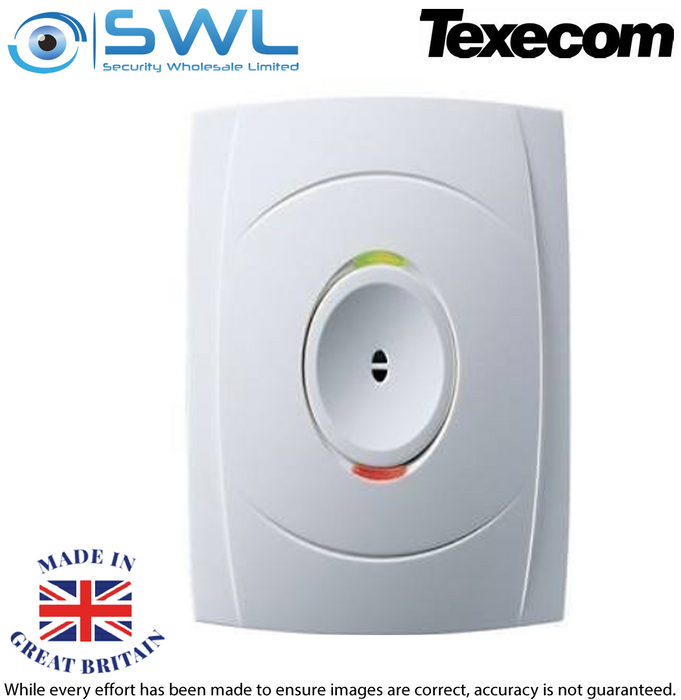

Texecom Premier Impaq Glass Break AEC-0001 - 9m, 170° Coverage
Description
The Texecom Impaq Glass Break provides reliable perimeter protection with unparalleled false alarm immunity. Digital signal processing ensures precise, accurate detection of breaking windows - and nothing else. For uncompromising performance with a host of user friendly features, insist on the Impaq Glass Break.
Digital Signal Analysis
The Impaq Glass Break is an acoustic glass break detector designed to provide the earliest possible warning of a potential intruder by detecting the sound of breaking glass. An advanced microprocessor analyses signals digitally, processing information relating to the frequency, amplitude and timing of every sound. For maximum false alarm immunity four separate frequency bands are analysed (Quad Frequency Analysis). The Impaq Glass Break will only indicate an alarm if the signals exactly match those of a window being broken.
Digital Flex Detection False alarm immunity is further enhanced by the use of Digital Flex Detection. This detects the low frequency pressure wave transmitted when a window is struck. An alarm signal will only be generated if a flex signal is detected, followed immediately by the shatter signal. This ensures common false alarm sources (e.g. a glass bottle breaking outside) are completely ignored.
Specifications
* Maximum Range: 9m, 170°
* Supply Voltage: 9 - 16VDC
* Current Consumption: 11mA typical
* Alarm Relay Output: Normally Closed, <24VDC, 50mA, 18Ù
* Dimensions: 87mm x 62mm x 26mm
* Sensor Type: Extended Response Electret Microphone
* Minimum Window Size: 300mm x 300mm
* Glass Type Detection: Plate, Tempered, Laminated, Wired
* Glass Thickness: 2.4 - 6.4mm
Conoformance
* EMC: Independently certified to EN50130-4 : 1996
* RF Immunity: No false alarms from 80MHz to 1GHz at 10V/m
EUROPEAN STANDARDS
* Conforms to European Union (EU) Electro-Magnetic Compatibility (EMC) Directive 89/336/EEC (amended by 92/31/EEC and 93/68/EEC).
* Approved to BS EN 55022 Class B and BS EN 50130-4 : 1996.
* The CE mark indicates that this product complies with the European requirements for safety, health, environmental and customer protection.
See secification sheet below.
