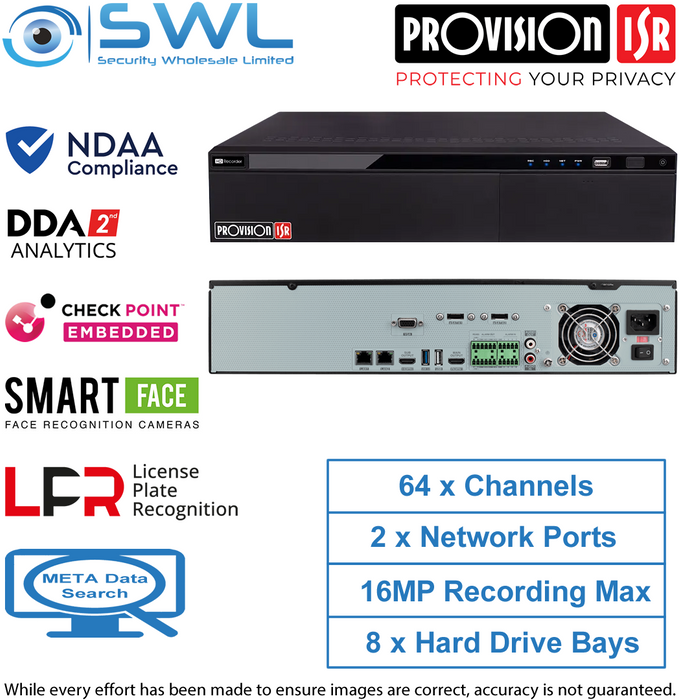

Provision-ISR NVR16-641600RFAN(2U): 64CH 4K NVR No PoE. 2x NIC 8x HDD. No HDD
Stock Code:
33571
POA
Description
Provision-ISR NVR16-641600RFAN(2U) is an easy-to-install solution suitable for big-sized installations (up to 64 channels). The device features 16 alarm inputs + 4 alarm outputs and provides you with everything you need for a trouble-free CCTV project. All hardware components, including the RAID, are validated to meet the demands for reliable high-definition surveillance. This model complies with NDAA demands and ensures your devices are cyber-protected round the clock with the integrated Check Point Quantum IoT Nano agent that provides an advanced threat prevention layer against the common attack vectors at runtime.
Features:
* NDAA Compliant* On board Cyber Security - Check Point Quantum IoT Nano agent
* IP Video Inputs - 64
* Onboard PoE - None, network switches required
* Max Input / Output - 640Mbps / 640Mbps
* Recording - 64CH 8MP real time
* Max Decoding - 1CH@16MP, 4CH @12MP, 9/16 1MP, 64CH D1
* Video Compression - H.265+/ H.265+ H.265S/ H.264
* Display Outputs - 1x HDMI (8K), 1x HDMI (4K), 1x FHD output, VGA outputs
* Storage - 8x HDD bays, max capacity 8TB each (not included)
* Storage - E-Sata Support - 2
* RAID - 0/ 1/ 5/ 6/ 10 supported
* Ethernet Port - 2x NIC 1000/100/10Mbps self adaptive Ethernet itnerface
* Analytic Support - DDA2, Face-Recognition, LPR & Fish-Eye Support (Camera dependent)
* Search Mode - DDA object, Smart Search, LPR, Time-Slice, Tim, Event, POS
* Alarm Input / Output - 16 alarm inputs, 4 alarm outputs
* Audio Input / Output - 1CH in / out depending on camera input/ output
* ONVIF - Full device support (Profiles T/G, ONVIF v20.12)
* Power Input - AC100-240V.
* Dimensions - W436 x D445x H90mm
* Supplied with rack mount tabs & screws
* APP Support - Provision CAM2 for iOS/ Android
Storage & UPS Options:
* 4Tb 46075* 6Tb 460751
* 10Tb 460753
* EATON 5E UPS 650VA/360W, 2x NZ OUTLETS 13070
* EATON 5E UPS 1100VA/660W, 3x NZ OUTLETS 13076
