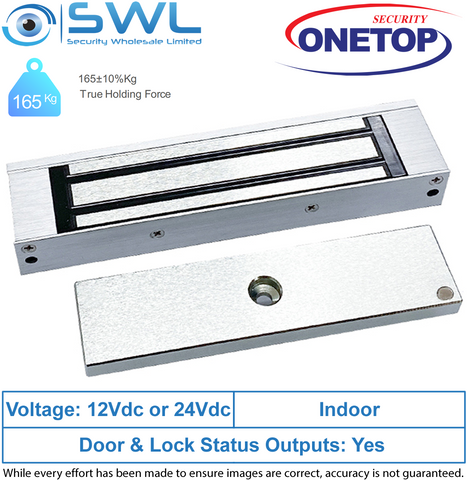

ONETOP CCW30S DSS: Micro Surface Mount Mag Lock, 12/24 VDC, 165kg Monitored
Stock Code:
580131
POA
Description
CCW30S series is mini electromagnetic locks with a true holding force of 165kg andefficiently treated high premium quality plating against corrosion, resistant up to 96 hours
salt spray corrosion test and to perform to over 1 million operation usage lifespan.
Features:
* Dimensions: 165L x 38.5W x 21D (mm)* Holding Force: Up to 165Kg
* Dual voltage 12/24VDC
* Current draw: 360mA 122VDC, 180mA 24VDC
* 2 Hour fire rating
* Lock Status Output (LSS) NO/NC/COM, Max 24VDC; Max 2A
* Door Status Output (DSS) NO/COM, Max 24VDC; Max 0.2A
* Surface Finish - Anodized Aluminium housing Zinc plated for anti-corrosion
