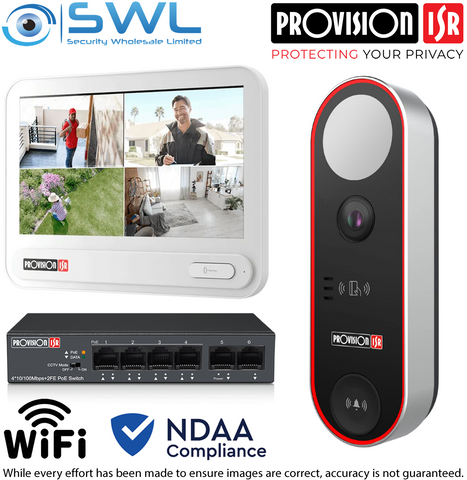

Provision-ISR Door Bell Kit: 1 x Door Bell, 1 x 4 Port Switch, 1 x 7" Monitor
Stock Code:
33433
POA
Description
Kit Includes:
1 x 33434 Provision-ISR DB-320WIPN 2MP Doorbell Camera, IR & White Light1 x 33442 Provision-ISR MON-TCH7: Intercom Indoor Station: 7" Touch Screen, NDAA
1 x 34300 Provision-ISR PoES-0460C+2I-V2 : 4 x 10/100 PoE + 2 x 10/100 Link 60W
Intercom Features:
* Sensor: 1/2.8" CMOS (16:9)* Resolution: 1920×1080 25/30FPS (2MP)
* Lens: 2.3mm (139°)
* True Day&Night – ICR
* Illumination: 3m (2 IR LEDs) + 1m (1 White LED)
* Compression: H.265 / H.264 / H.265+ / H.264+ / MJPEG (Substream only)
* 2D Face Detection
* Person Detection
* Digital WDR, BLC, HLC, ROI
* SD Card: Event/Schedule Record (Up to 256GB)
* Built-in Microphone and Speaker
* ONVIF: Profile T/S/G
* WiFi (2.4G ONLY)
* Water Proof: IP65
* Door Lock Support
• Door Sensor Support
• Open Door Button
• RFID
• Weight: ~145g
• Power: DC12V/~500mA / PoE/~5.4W
Monitor Features:
* Screen Size: 7" IPS Touch Screen* Max. resolution: 1024x600
* Brightness: 300cd/m2
* Compression: H.265+ / H.265 / H.264 / MJPEG
* SD Card: Manual Record up to 256GB (not included)
* 8CH input
* Wireless 802.11b/g/n (2.4Ghz ONLY)
* 2-Way Audio: Built-in Michrophone & Speaker
* ONVIF Support
* Weight: ~360g
* Power: DC12V/~200mA / PoE/~6W
Switch Features:
* Built-in Power Supply - Mains IEC Lead Supplied* Downlink: 4x 10/100Mbps RJ45 port
* Uplink: 2x 10/100Mbps port
* PoE Power 60W total, 32W port maxium
* Backbone Bandwidth - 1.2Gbps
* Complies With IEEE802.3af/at Power Over Ethernet
* Built-in Surge Protection
* Dimensions - 140*76.7*28mm
* Desk Top Mount
* NDAA Compliant
* CCTV mode - transmission distance is extended up to 250m (limited to 10Mbps)
