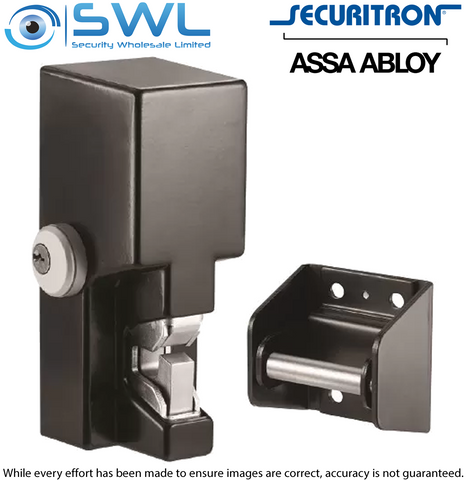

ASSA ABLOY SGL1-FSM Securitron 900kg GATE LOCK
Stock Code:
60105
POA
Description
***** Ordered at request 3-4 day lead time *****
Electromechanical Gate Solution Offers One Ton of Holding Power
The heavy duty GL1 Electromechanical Gate Lock provides weather-resistant access control for a wide range of gate applications. The GL1 provides over 900kg of holding force for electrical and manually operated indoor or outdoor gates where preload is a concern. Ideal for swinging or sliding Product features vehicle, pedestrian, or stock gate access control.
Features:
* 907kg holding force* Operates under preload up to 45kg
* Automatic dual voltage - no field adjustment required
* Accepts a standard mortise cylinder with Adams Rite MS cam for manual key override (not included, see spacer guide below)
* Self-aligning receiver (+/- 12mm horizontally) helps compensate for gate misalignment and sag
* Tamper resistant cast housing
* Optional latch status monitor
* Fail Safe - unlockswhen power is cut
* Surface mount
* Dimensions: 2-3/4inch L x 7-1/4inch W x 3-1/4inch D
* Electrical:
-12 Volts Initial (Peak): (~1.0 sec.) @ 870mA - Reduced: 290mA Power
-24 Volts Initial (Peak): (~1.0 sec.) @ 720mA - Reduced: 170mA Power
* Operating temperature: 50 to +75C
* Indoor or outdoor use
* Shipping Weight: 2.72kg
